金属不锈钢异鞍环填料

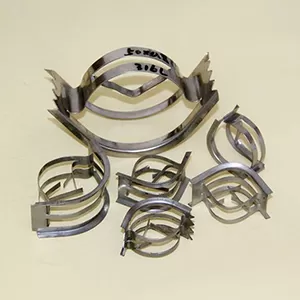

金属异鞍环是一种新型高效散装金属不锈钢填料，融合了鞍形结构和环形结构的优势。其形状不对称，表面设有多个翻边和切口，既保留了鞍形填料的良好液体分布性能，又具备环形填料的高气速通过能力，有效改善了气液两相接触状况。...
产品询盘
产品详情
以下是关于金属异鞍环的介绍及产品规格参数：

产品介绍

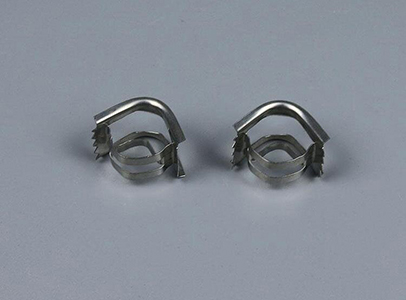

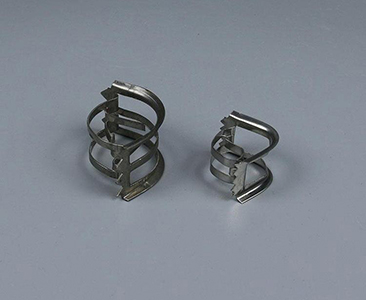

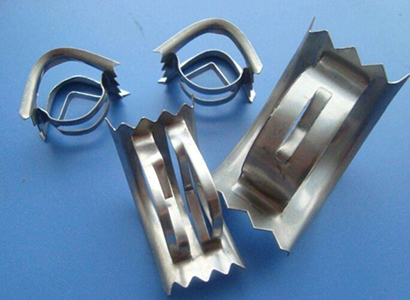

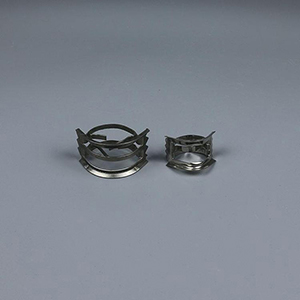

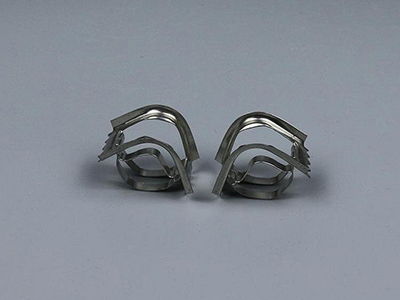

  • 结构特点：金属异鞍环是一种新型高效散装填料，融合了鞍形结构和环形结构的优势。其形状不对称，表面设有多个翻边和切口，既保留了鞍形填料的良好液体分布性能，又具备环形填料的高气速通过能力，有效改善了气液两相接触状况。

1 (1).jpg

（示意图仅供参考，实际产品以实物为准）
  • 性能优势
    • 高效传质：独特的不对称结构增加了气液接触面积和扰动程度，减少了沟流和壁流现象，使传质效率显著提升，相比传统填料可提高传质单元高度。
    • 优良流通能力：较大的空隙率设计降低了气体流动阻力，允许更高的气速操作，提高了设备的处理能力。
    • 抗堵塞性强：结构设计减少了液体滞留和固体沉积，在处理含少量杂质的物料时不易堵塞，维护成本低。
    • 机械性能优异：采用碳钢、不锈钢（如 304、316 等）等金属材料制成，具有高强度、耐高压和良好的抗冲击性能，可适应高压、高负荷的工业环境。
    • 适应性广：对不同物性的物料（如易发泡、高粘度液体）具有较好的适应性，操作弹性大。
  • 应用领域：广泛应用于石油化工、精细化工、医药、环保、冶金等行业的蒸馏、吸收、解吸、萃取、洗涤等单元操作中，如汽油分离塔、芳烃抽提塔、废气净化塔、酸雾吸收塔等塔式设备。

产品规格参数

规格（mm）
材质
堆积重量（kg/m³）
比表面积（m²/m³）
空隙率（%）
堆积密度（kg/m³）
堆积个数（n/m³）
干填料因子（m⁻¹）
φ25
碳钢
480
220
92
450-480
58000-62000
245
φ25
304 不锈钢
510
225
91
490-520
56000-59000
250
φ38
碳钢
420
155
93
390-420
18000-20000
175
φ38
316 不锈钢
450
160
92
430-460
17000-19000
180
φ50
碳钢
380
115
94
360-390
7500-8500
130
φ50
304 不锈钢
410
120
93
390-420
7000-8000
135
φ76
碳钢
320
85
95
300-330
2500-3000
95
φ76
316L 不锈钢
350
90
94
330-360
2300-2800
100
